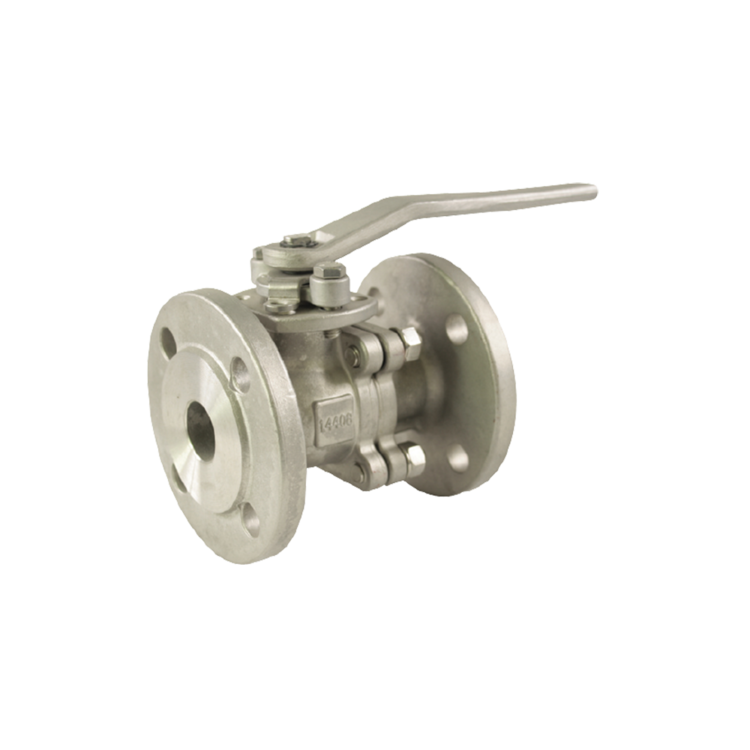

2-Piece Flanged Ball Valve, JIS 10K/20K, Full Bore (D)
SIZE : 1/4″~4″
END CONNECTION : JIS 10K
- VALVE DESIGN : ASME B16.34
- STEEL CASTING : MSS SP-55
- FACE TO FACE : JIS B 2002
- FLANGE CONNECTION : JIS B 2212
- PRESSURE TEST : JIS B 2003 (API 598)
MAX. PRESSURE :
MAX. TEMPERATURE : 180℃
PORT : FULL BORE
MATERIAL : ASTM A351-CF8M (1.4408) / ASTM A351-CF8 (1.4308)
- ISO5211 DIRECT MOUNTING PAD
- INVESTMENT CASTING BODY & END CAP
- RF ENDS (RIPPLE FACE / LAPPED FACE)
- BLOW-OUT PROOF STEM DESIGN
OPTION
- FIRE SAFE : API 607-5TH EDITION CERTIFIED
- TFM 1600/ TFM 4215/ PEEK/ UPE SOFT KITS
- PTFE/ PFA COATING (40 -70㎛)
- HASTELLOY C / SUPER DUPLEX / ALLOY 20 / MONEL
- ANTI- STATIC DEVICES
- V-BALL FOR MODULATING CONTROL 15˚, 30˚, 60˚, 90˚
- FLANGE WITH TABLE D, TABLE E DRILLING
