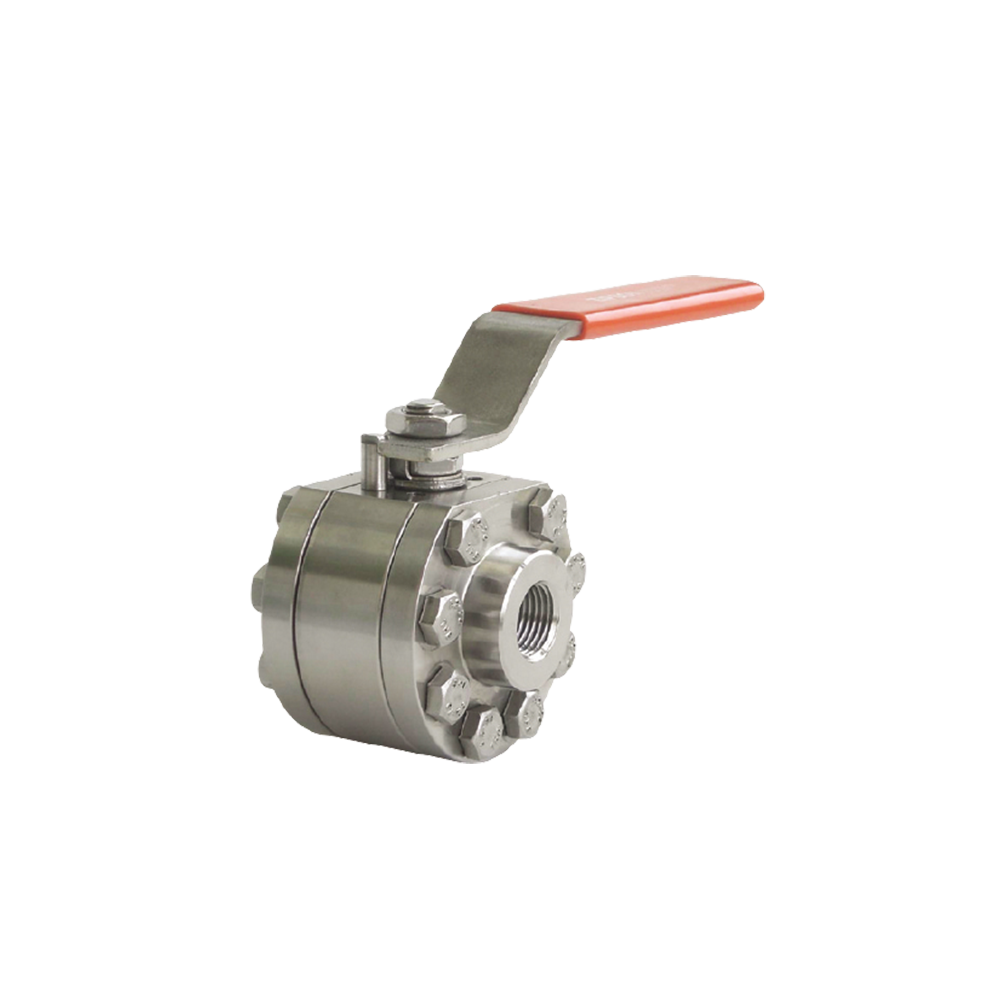

3-Piece Ball Valve, Threaded/SW/BW, Full Flow, 6000PSI
SIZE : 1/4″~2″
END CONNECTION
- SCREWED : BS21 1973 (BSPT), ANSI B2.1 (NPT), DIN 259/2999, ISO 228
- SOCKET WELD : JIS B2316, ANSI B16.11
- BUTT WELD : SCH.80 & SCH.160
MAX. PRESSURE
- 7500PSI (CLASS 3000) .... 1/4″ to 1
- 6000PSI (CLASS 2500) .... 1-1/4″ to 2
MAX. TEMPERATURE : 230℃ (PEEK), 100℃(DELRIN)
PORT : FULL FLOW
MATERIAL : ASTM A182-F316, F304 & A105
- INVESTMENT CASTING BODY
- BLOW-OUT PROOF STEM
- LEVER HANDLESPAN
OPTION
- FIRE SAFE DESIGN (API 607)
- SPRING HANDLE (DEAD MAN HANDLE)
- OVAL HANDLE
- CRYOGENIC TYPE
- LOCKING DEVICE (BOTH OPEN & CLOSE POSITION)
- V-FLOW BALL FOR CONTROL VALVE (15˚, 30˚, 60˚AND 90˚)
- PTFE/PFA COATING (40~70㎛)
- SPECIAL ALLOY : HASTELLOY C276 / SUPER DUPLEX / ALLOY 20 / MONEL 400
