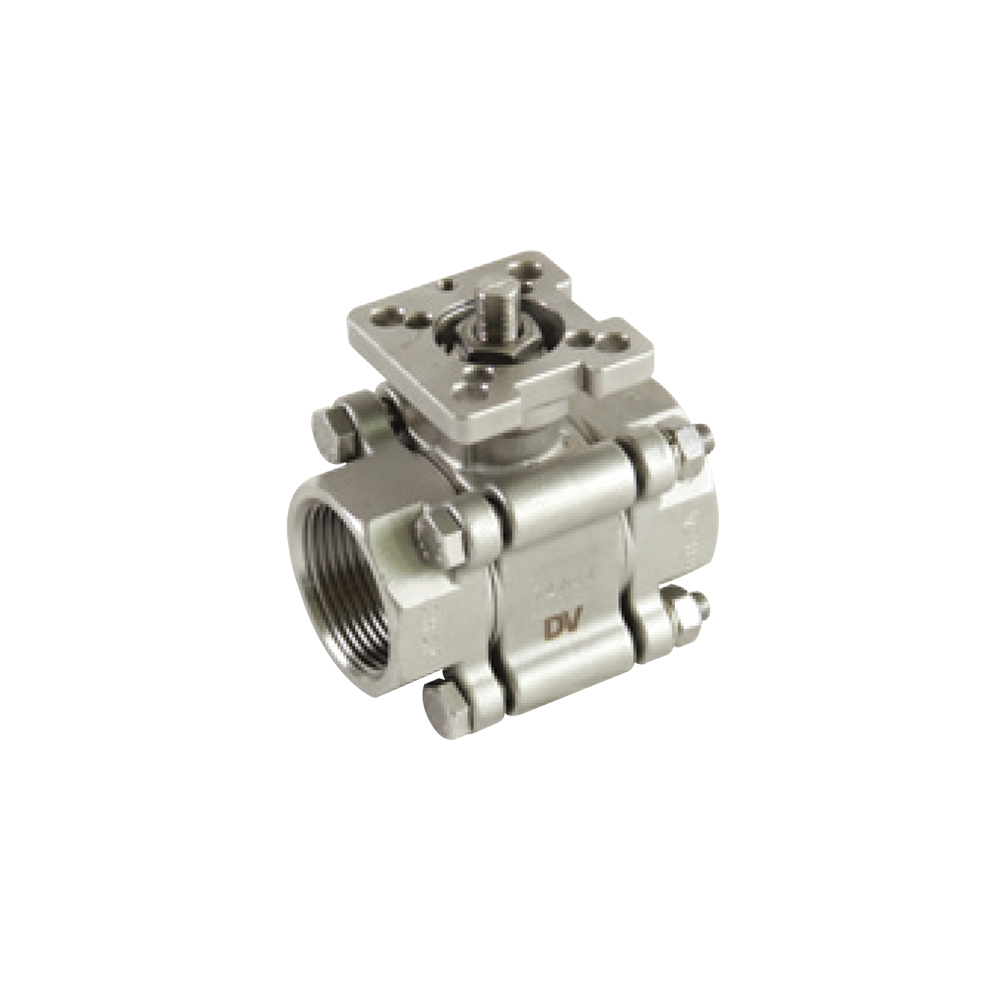

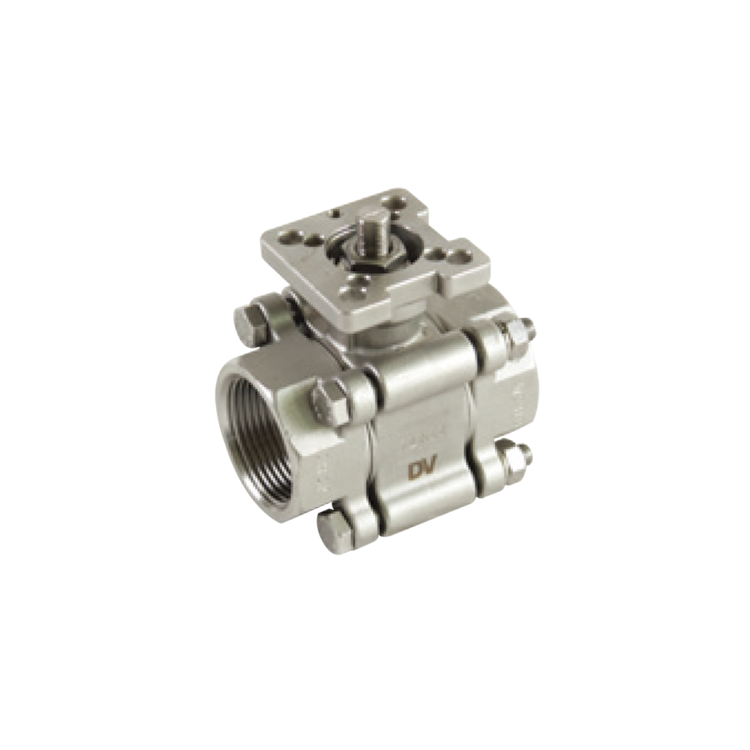

3-Piece Ball Valve, Threaded, Standard Flow, 2000PSI
SIZE : 1/4″~2-1/2″
END CONNECTION
- SCREWED : BS21 1973 (BSPT), ANSI B2.1 (NPT), DIN 259/2999, ISO 228
- SOCKET WELD : JIS B2316, ANSI B16.11
- BUTT WELD (37.5˚)
MAX. PRESSURE
- 2000PSI (141 kg/cm²) .... 1/4″ to 1″
- 1500PSI (106 kg/cm²) .... 1-1/4″ to 2″
- 1000PSI ( 70 kg/cm²) .... 2-1/2″ to 4″
MAX. TEMPERATURE: 160℃
PORT : STANDARD(REGULAR) FLOW
MATERIAL : ASTM A351-CF8M (1.4408) / ASTM A351-CF8 (1.4308)
- ISO5211 DIRECT MOUNTING PAD
- INVESTMENT CASING BODY & END CAP
- BLOW-OUT PROOF STEM
OPTION
- FULL PORT (1/4″TO 4″)
- V-PORT (30˚,45˚,60˚)
- FIRE SAFE DESIGN
- DIN STANDARD M3 LENGTH
