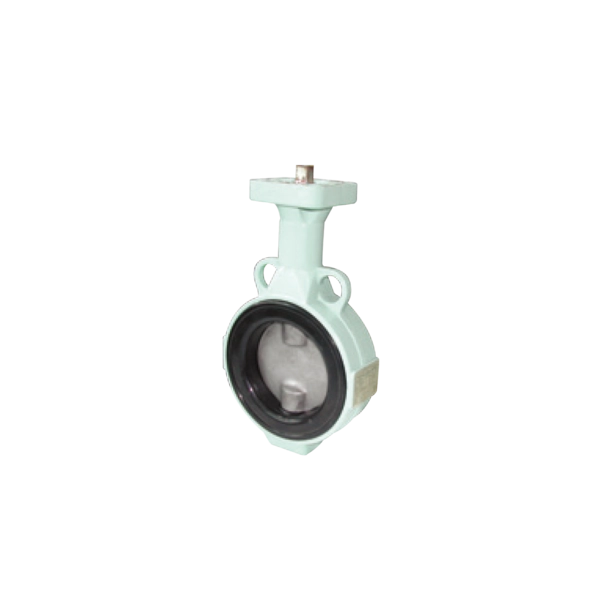

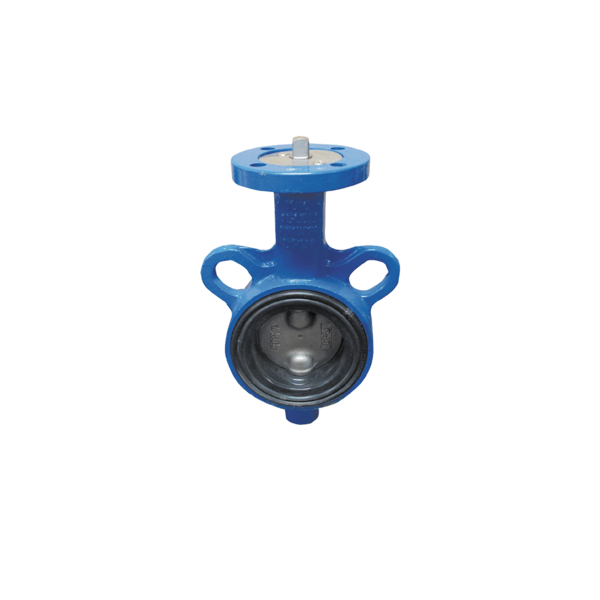

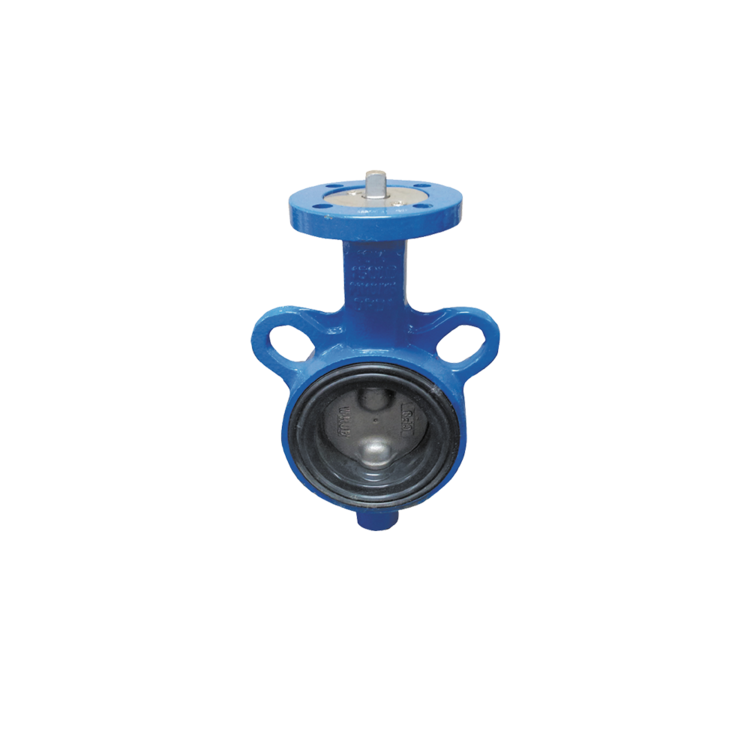

Butterfly Valve, Wafer, JIS 5K/10K, ANSI 150, PN 6/10/16
SIZE : 1-1/2″~16″
TYPE OF BODY : WAFER
END CONNECTION :
MAX. PRESSURE : 10kg/cm² (0.98MPA)
MAX. TEMPERATURE: EPDM (-20℃ to +120℃) / NBR (-10℃ to +80℃)
PORT : FULL BORE
FLANGE : JIS 5K / 10K, ANSI 150, PN 6 / 10 / 16 (BS4504)
MATERIAL
- BODY : CAST IRON, CAST STEEL, DUCTILE IRON, STAINLESS STEEL
- DISC : STAINLESS STEEL, ALUMINIUM BRONZE
- STEM : SS 410
- SEAT : EPDM, NBR, PTFE
OPTION
- LUG BODY
- FLANGE BODY
- SIZE : 14″~ 48″
- COATING DISC (PFA, VITON)
