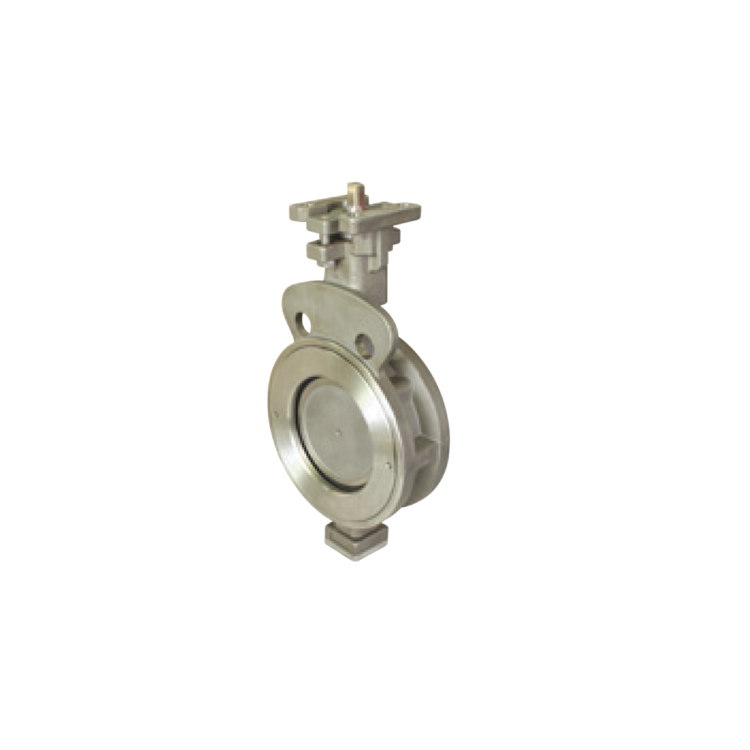

High Performance Butterfly Valve, Wafer, ANSI 300
SIZE : 3/4″~12″
TYPE OF BODY : WAFER
END CONNECTION :
MAX. PRESSURE :
MAX. TEMPERATURE
- EPDM : -20℃ to + 120℃
- PTFE : -60℃ to + 160℃
- RTFE : -60℃ to + 200℃
- METAL : -120℃ to + 450℃
FLANGE : ANSI 300
MATERIAL
- BODY : DUCTILE IRON, CAST STEEL, STAINLESS STEEL (304, 316)
- DISC : STAINLESS STEEL (304, 316 & 316L)
- STEM : STAINLESS STEEL (304, 316, 316L & 630)
- SEAT RING : EPDM, PTFE, RTFE, METAL
- FACE TO FACE DIMENSION : ISO 5752, API 609, MSS SP-68, DIN 3203 / K1 (SHORT)
- TOP FLANGE DIMENSION : BOLT HOLE TO ISO 5211
- STEM DIMENSION : SQUARE DRIVE TO ISO 5211
- DOUBLE ECCENTRIC (OFFSET) DISC
- VACUUM EQUIPMENT(UP TO 10-5 TORR)
OPTION
- LUGGED BODY
- LONG BONNET
