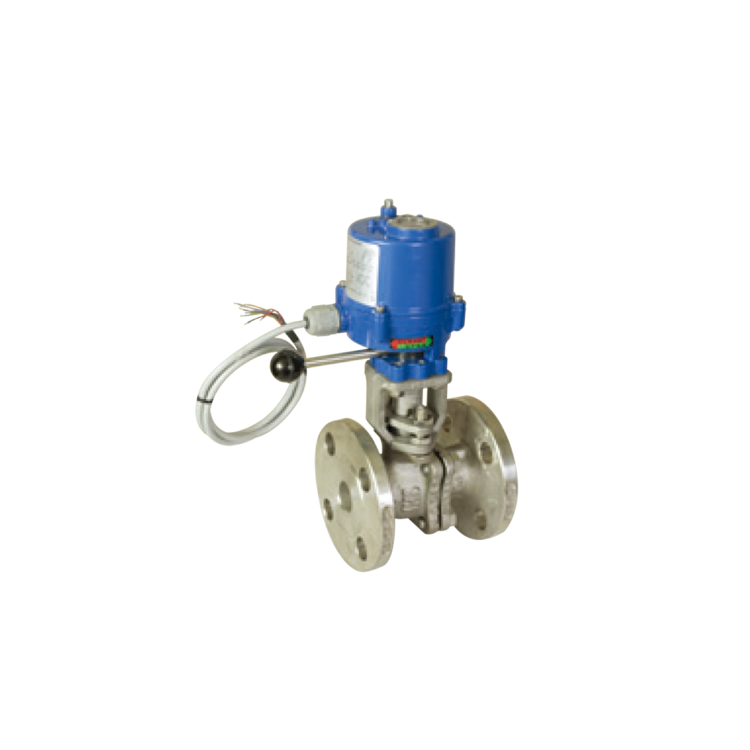

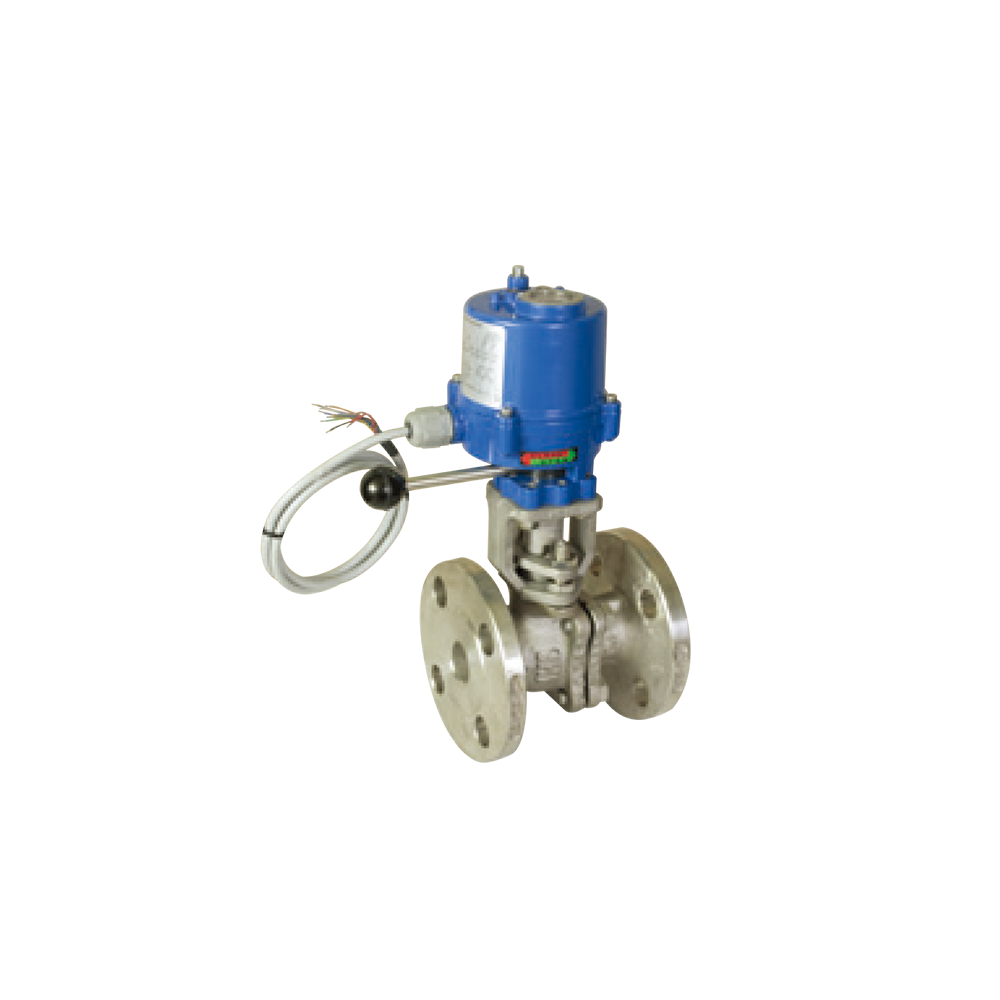

Electric 2-Piece Flanged Ball Valve
SIZE : 1/2″~12″
END CONNECTION :
MAX. PRESSURE :
MAX. TEMPERATURE:
PORT : FULL BORE
FLANGE : ANSI 150 / 300LBS
MATERIAL : SCS14 (ASTM A351-CF8M), SCS13 (ASTM A351-CF8)
- FIRE SAFE DESIGN
- ANTI STATIC DEVICE
- BLOW-OUT PROOF STEM
- LOCKING DEVICE
- LOWER BREAK AWAY TORQUE
- SAND CASTING BODY & END CAP
APPLICABLE STANDARDS
- FACE TO FACE DIMENSION : ANSI B16.10
- END FLANGE DIMENSION : ANSI B16.5
- SHELL WALL THICKNESS : ANSI B16.34
- GEARBOX OPERATOR : 200A (8″) & LARGER
ELECTRIC ACTUATOR
- Quarter turn type
- Power : AC 110/220V 1PH, AC 380/440V 3PH, DC 24V
- Enclosure : Weatherproof IP67
- Ambient temp. : -20˚C ~+60˚C
- Bottom : ISO5211 mounting base
- Top : Dome type indicator
- With manual device(spanner, wrench or handwheel
Option
- Watertight englosure (IP68 5m 120hr)
- Explosionproof enclosure (Eexd IIB T4)
- Modulating control unit (4-20mA, 0~1V, 2~10V, 0~5V, 1~5V, 0~10V DC)
- Local Control
- Local and Modulating control
- 24V DC control board (2 wire, 3 wire)
- Thermal protection
- Heater
- Thermal protection and Heater
- Potentiometer (0~1K Ω)
- Extension 120˚, 180˚, 270˚ turn
