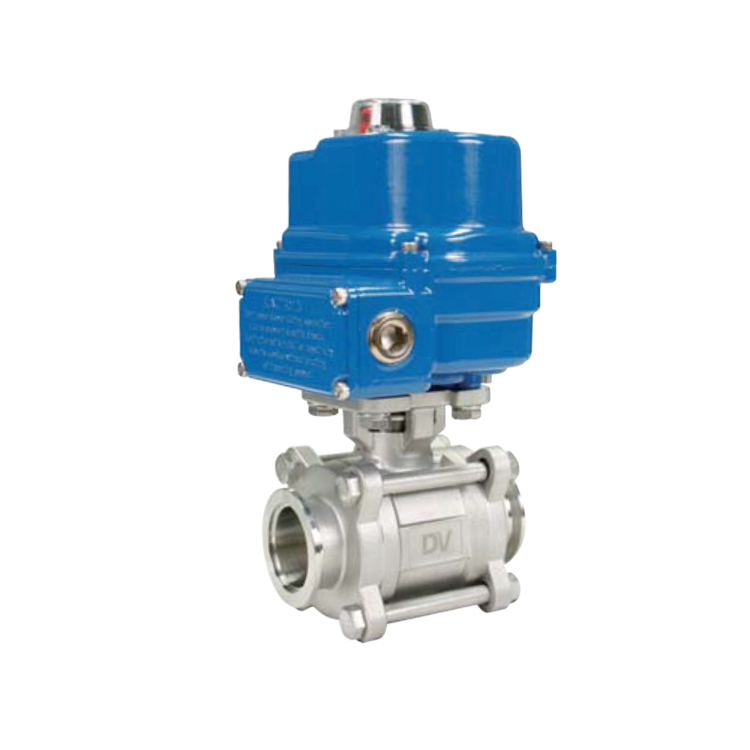

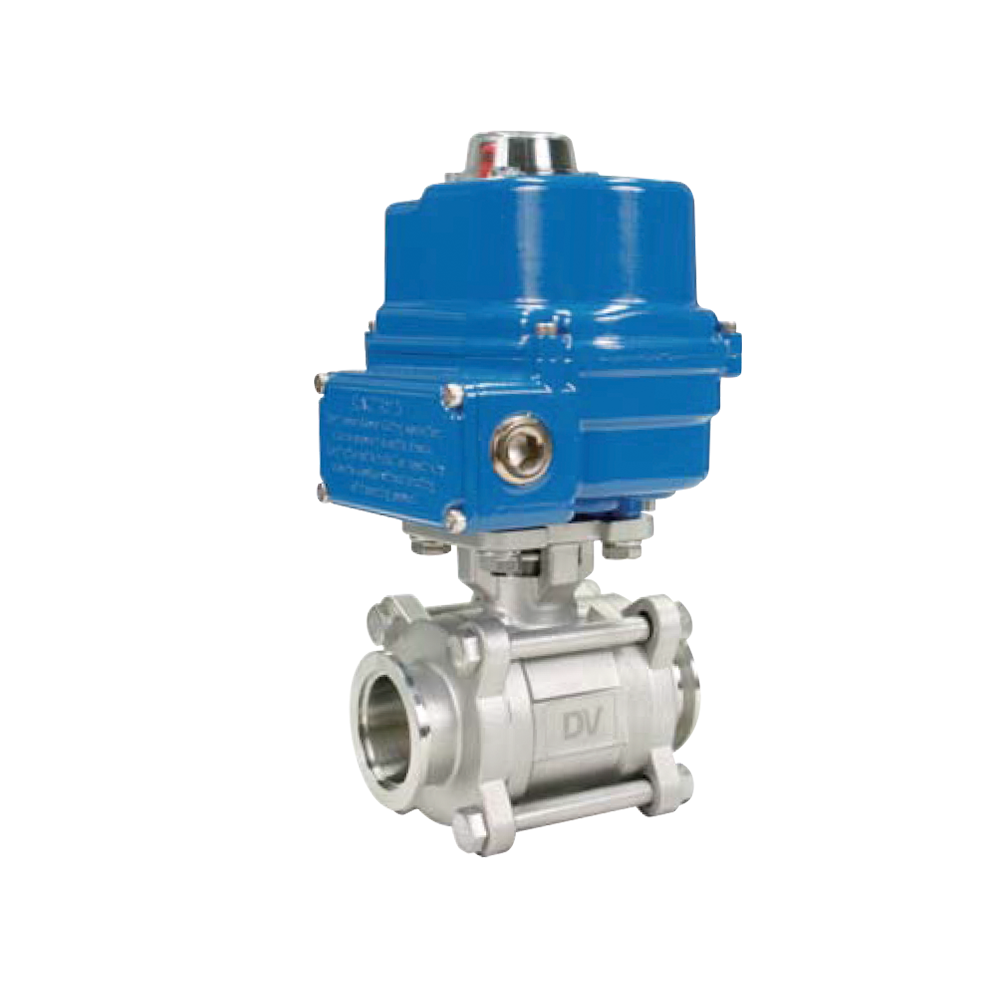

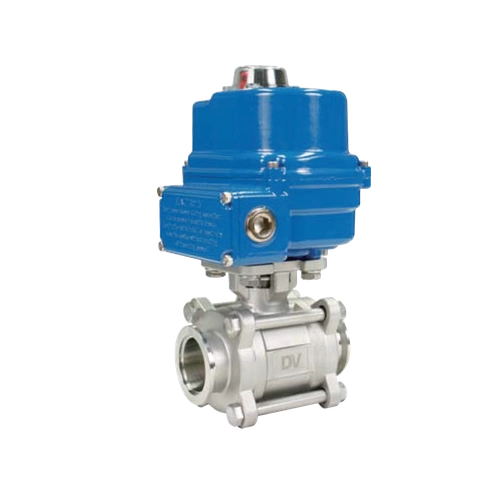

Electric Vacuum 2-Way Ball Valve
SIZE : NW16~NW100
END CONNECTION : NW Ends
MATERIAL
- BODY : SS316(CF8M)
- SEAT : PTFE(NW16~NW50), TFM-1600(NW100)
- 3-Piece Body
- ISO5211 Direct Mounting Pad
- With Lever Handle
- Vacuum rate : 1 x 10-5 Torr
- Leakage Helium Test : 1 x 10-9 atm cc/sec
ELECTRIC ACTUATOR
- Quarter turn type
- Power : AC 110/220V 1PH, AC 380/440V 3PH, DC 24V
- Enclosure : Weatherproof IP67
- Ambient temp. : -20˚C ~+60˚C
- Bottom : ISO5211 mounting base
- Top : Dome type indicator
- With manual device(spanner, wrench or handwheel
Option
- Watertight englosure (IP68 5m 120hr)
- Explosionproof enclosure (Eexd IIB T4)
- Modulating control unit (4-20mA, 0~1V, 2~10V, 0~5V, 1~5V, 0~10V DC)
- Local Control
- Local and Modulating control
- 24V DC control board (2 wire, 3 wire)
- Thermal protection
- Heater
- Thermal protection and Heater
- Potentiometer (0~1K Ω)
- Extension 120˚, 180˚, 270˚ turn
